Launch a Rollup

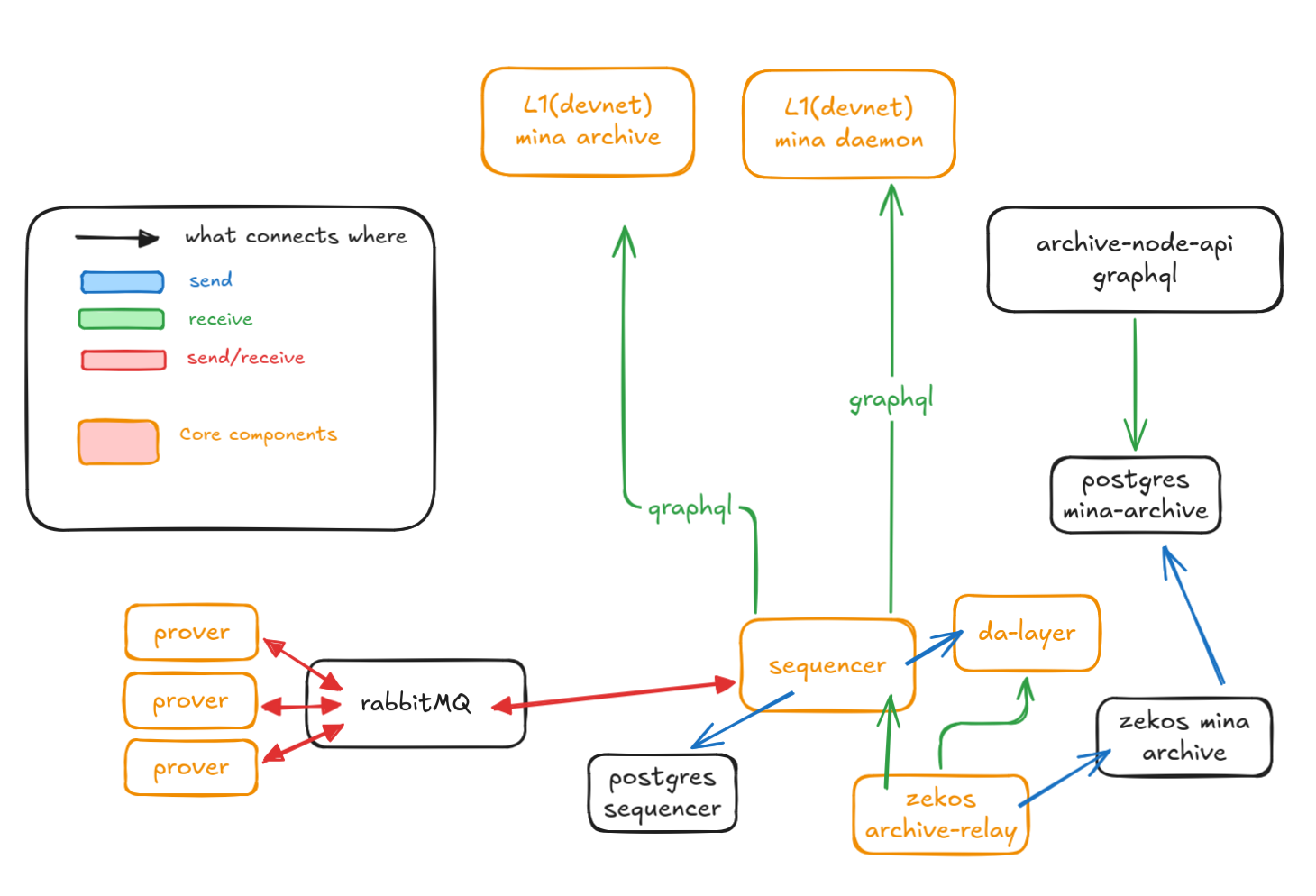

In this guide we will create a betternet - an L2 Zeko Rollup for Mina Devnet.

At a minimum, you need to run the following components:

Sequencer
DA Layer
Prover

We will use docker compose to define the whole stack in a single file.

TL;DR skip to the Bootstrap process

Prerequisites

System Requirements

Linux or macOS (Windows WSL2 works too)
At least 4 CPU cores, 24GB RAM

Installed Software

Docker

Overview

In this guide we are going to:

Create a sequencer wallet and make sure it has funds.
Create a faucet wallet.
Create a deployment/circuits config
Deploy a created configuration
Start a betternet L2 stack

Wallets

Deploying a rollup the following wallets are mentioned:

sequencer - A wallet to commit to zkApp. Has to be even
faucet - A wallet that holds the funds. Cannot reuse sequencer's wallet
da-layer - Each da-layer node is started with its wallet.
fee-payer - A wallet that pays fees on commits. (We will use sequencer)
pause - A wallet authorised to pause rollup. Has to be even (We will use sequencer).

Project Structure

Layout of the project directory:

project-root/
├── docker-compose.yml
├── keys/
├── data/
│   ├── postgresql/
│   ├── da-layer/
│   └── sequencer/
└── initdb/ # PostgreSQL init scripts

Important Files

File	Purpose
`keys/sequencer-sk`	L1 private key used by sequencer to post proofs and pay fees
`keys/sequencer-pk`	L1 Public key used in deploy step
`keys/faucet-sk`	Faucet secret key used to distribute tokens inside L2
`keys/faucet-pk`	Faucet public key
`keys/da-node-sk`	Private key of the DA node
`keys/da-node-pk`	Public key of the DA node (exposed to sequencer)
`data/{postgresql,da-layer,sequencer}/`	Persistent storage for services

Note: Keys must NOT have newlines or extra spaces.

Service Overview

postgresql - Used by sequencer.
rabbitmq - Messaging layer used between sequencer and prover.
da-layer - Data Availability layer for the betternet.
prover - Generates zk-proofs for work submitted by the sequencer.
sequencer - Runs the rollup logic, batches transactions, interacts with DA layer, and posts proofs to L1.

Ports Exposed

Service	Port	Description
sequencer	`1923`	Public API
da-layer	`1924`	DA API
postgres	`5432`	Local DB dev access
rabbitmq	`5672`	Internal service bus

Bootstrap process

Getting/Creating configuration files

Copy docker-compose.yaml to your project folder.

Click to expand

yaml

services:
  init-config:
    image: docker.io/zekolabs/zeko:latest
    container_name: init-config
    user: "1000"
    working_dir: /data
    volumes:
      - ./data:/data
      - ./keys:/keys
    entrypoint:
      - sh
      - -c
    restart: "no"
    command: >
      "while [ ! -f /keys/.created ];
        do sleep 2;
      done; exit 0"
  init-deploy:
    image: docker.io/zekolabs/zeko:latest
    container_name: init-deploy
    depends_on:
      - init-config
      - da-layer
    working_dir: /data
    volumes:
      - ./data:/data
      - ./keys:/keys
    entrypoint:
      - bash
      - -c
    restart: "no"
    command: >
      "while [ ! -f /tmp/.deployed ]; do
        sleep 2;
      done; exit 0"
  postgres:
    image: postgres:16
    container_name: postgres
    environment:
      POSTGRES_DB: sequencer
      POSTGRES_USER: sequencer
      POSTGRES_PASSWORD: sequencer
    volumes:
      - ./data/postgresql:/var/lib/postgresql/data
      - ./initdb:/docker-entrypoint-initdb.d
    user: "1000"
    ports:
      - "5432:5432"
    restart: unless-stopped
  rabbitmq:
    image: rabbitmq:latest
    container_name: rabbitmq
    volumes:
      - rabbitmq_data:/var/lib/rabbitmq
    ports:
      - "5672:5672"
    restart: unless-stopped
  da-layer:
    depends_on:
      - init-config
    image: docker.io/zekolabs/zeko-da:latest
    container_name: da-layer
    user: "1000"
    ports:
      - "1924:1924"
    environment:
      ZEKO_SIGNATURE_KIND: "testnet"
    entrypoint: bash -c
    command: |
      "export MINA_PRIVATE_KEY=$(cat /keys/da-layer-sk) && \\
      exec zeko-da \\
      run-node \\
      --port 1924 \\
      --db-dir /db \\
      --network-id testnet"
    volumes:
      - ./data/da-layer:/db
      - ./keys:/keys:ro
    restart: always
  prover:
    image: docker.io/zekolabs/zeko:latest
    container_name: prover
    depends_on:
      - rabbitmq
      - init-config
    environment:
      ZEKO_SIGNATURE_KIND: "testnet"
      ZEKO_CIRCUITS_CONFIG: "/circuits-config.json"
      RABBITMQ_USER: "guest"
      RABBITMQ_PASSWORD: "guest"
    volumes:
      - ./data/betternet-circuits.json:/circuits-config.json:ro
    entrypoint: bash -c
    command: |
      "exec zeko-prover \\
      run-server \\
      --mq-host rabbitmq:5672"
    restart: on-failure
  sequencer:
    image: docker.io/zekolabs/zeko:latest
    container_name: sequencer
    depends_on:
      - init-deploy
      - rabbitmq
      - prover
      - postgres
      - da-layer
    environment:
      ZEKO_PROGRESS_STYLE: "percent"
      ZEKO_SIGNATURE_KIND: "testnet"
      ZEKO_CIRCUITS_CONFIG: "/circuits-config.json"
      POSTGRES_URI: "postgres://sequencer:sequencer@postgres:5432/sequencer"
      RABBITMQ_USER: "guest"
      RABBITMQ_PASSWORD: "guest"
    volumes:
      - ./data/sequencer:/data
      - ./data/betternet-circuits.json:/circuits-config.json:ro
      - ./keys:/keys:ro
    ports:
      - "1923:1923"
    entrypoint:
      - bash
      - -c
    command: |
      "export MINA_PRIVATE_KEY=$(cat /keys/sequencer-sk) && \\
      export DA_LAYER_KEY=$(cat /keys/da-layer-pk) && \\
      exec zeko-run \\
      -p 1923 \\
      --l1-uri https://gateway.mina.devnet.zeko.io \\
      --archive-uri https://gateway.mina.archive.devnet.zeko.io \\
      --max-pool-size 10 \\
      --commitment-period 300 \\
      --da-node da-layer:1924 \\
      --da-quorum 1 \\
      --da-key $$DA_LAYER_KEY \\
      --mq-host rabbitmq:5672 \\
      --db-dir /data/db \\
      --checkpoints-dir /data/checkpoints \\
      --postgres-uri postgresql://sequencer:sequencer@postgres:5432/sequencer \\
      --fee-modifier 0.1"
    restart: on-failure

volumes:
  rabbitmq_data:
    name: rabbitmq

Create the folder structure

bash

mkdir -p {initdb,keys,data/{sequencer,da-layer,postgresql}}

Download create_schema.sql and place it inside ./initdb

Create ./initdb/init.sql with content:

sql

-- initdb/init.sql
CREATE DATABASE sequencer;

CREATE USER sequencer;
ALTER DATABASE sequencer OWNER TO sequencer;

Create circuits/decploy config and sequencer/da-layer keys

Start and exec into init-config container:

bash

docker compose up init-config -d
docker compose exec -it init-config bash

Note: This image is used to run Zeko sequencer/prover. Additionally it contains zeko-cli/zeko-deploy binaries.

Create deployment/circuits config

bash

zeko-cli generate-circuits-config > generated-config
csplit generated-config '/deploy config:/' '{*}'
mv xx00 betternet-circuits.json
mv xx01 betternet-deploy.json

Note: Currently generate-circuits-config produces a text file with both configuration and deploy. Therefore you need to manually remove deploy config:/circuits config: from created betternet-circuits.json/betternet-deploy.json files to make these json files valid. Since docker images do not contain any editor, in another shell navigate to your data folder and edit these files.

Create sequencer/da-layer keypairs

Note: Or place your own keys inside ./keys):
./keys/sequencer-pk
./keys/sequencer-sk
./keys/faucet-pk
./keys/faucet-sk
./keys/da-layer-pk
./keys/da-layer-sk

bash

# create `sequencer` keypair
zeko-cli generate-even-key | while read label1 label2 value; do
if [ "$label1" = "Private" ]; then
  echo "$value" > sequencer-sk
elif [ "$label1" = "Public" ]; then
  echo "$value" > sequencer-pk
fi
done
# create `faucet` keypair
zeko-cli generate-even-key | while read label1 label2 value; do
if [ "$label1" = "Private" ]; then
  echo "$value" > faucet-sk
elif [ "$label1" = "Public" ]; then
  echo "$value" > faucet-pk
fi
done
# create `da-layer` keypair
zeko-cli generate-even-key | while read label1 label2 value; do
if [ "$label1" = "Private" ]; then
  echo "$value" > da-layer-sk
elif [ "$label1" = "Public" ]; then
  echo "$value" > da-layer-pk
fi
done

mv {sequencer,faucet,da-layer}-{sk,pk} /keys
touch /keys/.created

Note: After the mv operation, the init-config container should exit.

Fund `sequencer` wallet

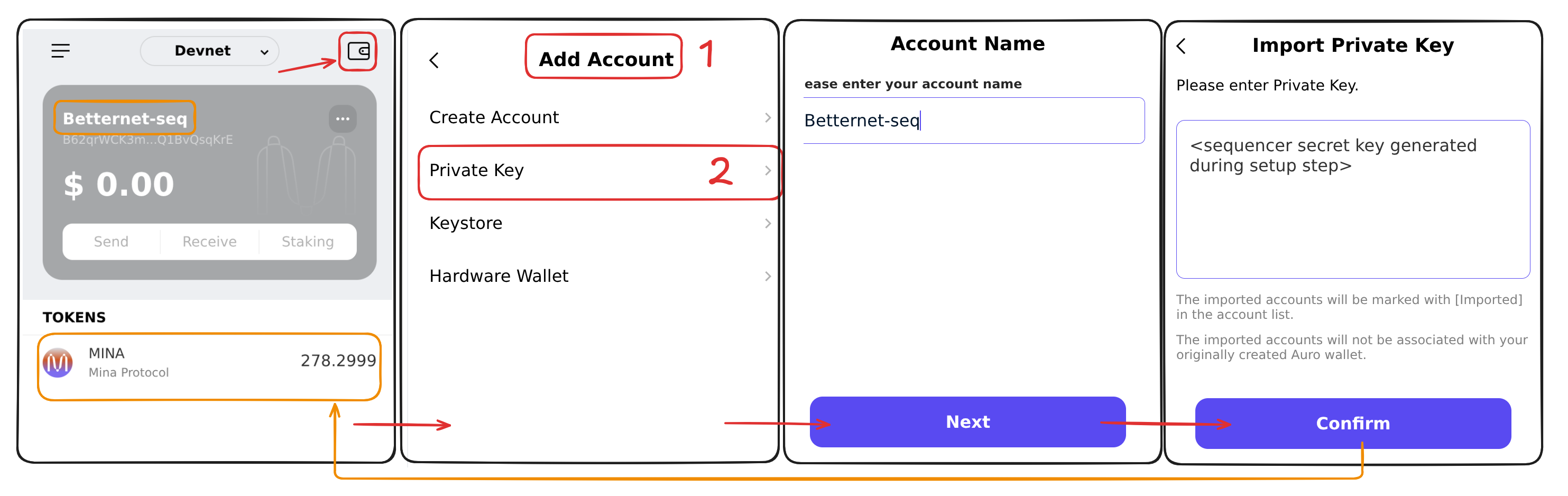

Using Auro Wallet or other preferred method import sequencer key created in the previous step
Go to Mina Devnet faucet and use faucet to add funds to the sequencer wallet
After a few minutes you should be able to see the funds in your Auro Wallet

Deploy `betternet` configuration

Start and exec into init-deploy container:
bash
```
docker compose up init-deploy -d
docker compose exec -it init-deploy bash
```
Note: It should also start da-layer container.

From inside init-deploy container run deploy

bash

export MINA_PRIVATE_KEY=$(cat /keys/sequencer-sk)
export ZEKO_DEPLOY_CONFIG=/data/betternet-deploy.json
export ZEKO_CIRCUITS_CONFIG=/data/betternet-circuits.json
export SEQUENCER_PK=$(cat /keys/sequencer-pk)
export FAUCET_PK=$(cat /keys/faucet-pk)
zeko-deploy --account-creation-fee 1 \
  --da-keys $(cat /keys/da-layer-pk) \
  --da-quorum 1 \
  --l1-uri https://gateway.mina.devnet.zeko.io \
  --pause-key $SEQUENCER_PK \
  --sequencer-key $SEQUENCER_PK \
  --faucet-account $FAUCET_PK \
  --da-node da-layer:1924 && \
  touch /tmp/.deployed

You should see the output:

outer secret key: EKE..
outer public key: B62..
holder secret key: EKD..
holder public key: B62..
token holder secret key: EKF...
token holder public key: B62...
Creating imt
(* Post genesis batch *)
(* Post the whole genesis diff with all the accounts *)
(* Deploy contract *)

Note: If successful,init-deploy container should exit with (0)

Wait for zkapp transaction to succeed

See example zkApp transaction status here

Start all services

bash

docker compose up -d

If all the steps were performed correctly you have the following:

Sequencer exposing graphql endpoint under http://localhost:1923/graphql
DA layer
Prover accepting work from the sequencer.
rabbitmq service used by sequencer/prover.
postgresql service used by sequencer.

Next steps

Add your newly deployed betternet network to Aura wallet.
Import faucet key into your Auro wallet.
Create wallets and start sending transactions to your sequencer.

Troubleshooting

Check logs

bash

docker compose logs -f

Stopping the Stack

docker compose down

To remove persistent data:

rm -rf data/
docker volume rm rabbitmq

Next Steps

Bridge Mina L1 tokens to L2 (TODO)

Guides & Tutorials

Guides & Tutorials

Guides & Tutorials

Launch a Rollup

Prerequisites

System Requirements

Installed Software

Overview

Wallets

Project Structure

Important Files

Service Overview

Ports Exposed

Bootstrap process

Getting/Creating configuration files

Fund `sequencer` wallet

Deploy `betternet` configuration

Wait for zkapp transaction to succeed

Start all services

If all the steps were performed correctly you have the following:

Next steps

Troubleshooting

Stopping the Stack

Next Steps

Launch a Rollup ​

Prerequisites ​

System Requirements ​

Installed Software ​

Overview ​

Wallets ​

Project Structure ​

Important Files ​

Service Overview ​

Ports Exposed ​

Bootstrap process ​

Getting/Creating configuration files ​

Fund sequencer wallet ​

Deploy betternet configuration ​

Wait for zkapp transaction to succeed ​

Start all services ​

If all the steps were performed correctly you have the following: ​

Next steps ​

Troubleshooting ​

Stopping the Stack ​

Next Steps ​

Launch a Rollup

Prerequisites

System Requirements

Installed Software

Overview

Wallets

Project Structure

Important Files

Service Overview

Ports Exposed

Bootstrap process

Getting/Creating configuration files

Fund `sequencer` wallet

Deploy `betternet` configuration

Wait for zkapp transaction to succeed

Start all services

If all the steps were performed correctly you have the following:

Next steps

Troubleshooting

Stopping the Stack

Next Steps
